Lab Fume Hood

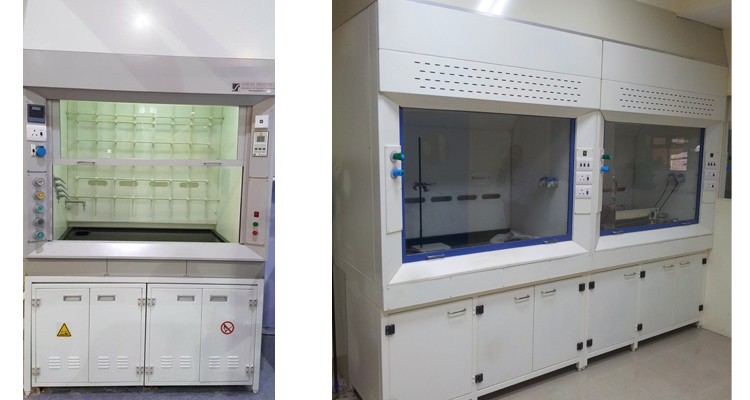

Standard Fume Hood is typical hood that is placed on the bench above storage cabinets. SFH is most offenly used in the QC & R&D Laboratorises to protect the scientist and chemist from harmful substances like. Heazardus gases, vapours , acidic fumes from the laboratory through exhaust sysytem.

Our designed is based on Industy Demands , the Highest Quality Material and Latest Technology. Our SFH design is also known as Double Bypass Fume Hood, and it will maintain constant exhaust volume at all the sash position. We can also make Fumehoods as per your suitable requirements.

  • Advance Aerodynamic design.
  • PP Powder Coating Finish for better resistance to corosion.
  • Excellent smooth sash movement.
  • Vapour proof flurocent light.
  • Removable / Preset baffel provides uniform face velocity.
  • Removable access panel for maintainance.
  • FRP airfoil for better resistance to corosion(Optional).
  • Damper with Manual Adjustment Regulator.

Material of construction (MOC)

  • CRCA Sheet (Cold rolled close Annealed)
  • GI (Galvanized Iron Sheet)
  • SS304/316 (Stainless Steel)
  • Wood (Marine Ply with laminates)
  • PP (Polyproplene)

Standard Size

  • 3 Feet (L 900mm X D 1000mm X H 2550mm)
  • 4 Feet (L 1200mm X D 1000mm X H 2550mm)
  • 5 Feet (L 1500mm X D 1000mm X H 2550mm)
  • 6 Feet (L 1800mm X D 1000mm X H 2550mm)
  • 7 Feet (L 2100mm X D 1000mm X H 2550mm)
  • 8 Feet (L 2400mm X D 1000mm X H 2550mm)

Work Top

  • Standard Black Granite
  • Telephone Black Granite
  • Back Painted Glass
  • Stainless Steel 304 (SS304)
  • Stainless Steel 316 (SS316)
  • Ceramic Top
  • TRESPA-TOP LAB (Imported)

Inner Lining

  • Polyproplene (PP)
  • Fiber Rainforced Plastic (FRE)
  • Phenolic Resine (Laminates)
  • SS304
  • SS316
  • TRESPA-VERTICAL (Imported)

Base Storage Cabinet

  • Apparatus Storage Cabinet
  • Chemical/Solvent Storage Cabinet
  • Combination Storage Cabinet

Sash Arrangment

  • Vertical Rising
  • Horizontal Sliding
  • Combination of Verical and Horizontal Sliding

Utility Valves

Electrical Services

  • 6/16 amp Socket and 16 amp switch
  • 20/32 amp Industrial Socket with MCB 20/32 amp
  • 20/32 amp BCH Socket with MCB 20/32 amp
  • Flame Proof Switch and Sockets

Latics

  • Pure apoxy latics
  • MS rod latics
  • SS rod latics

Cup sink

Ducting

  • Polyproplene (PP)
  • Fiber Rainforced Plastic (FRE)
  • High Dencity Polyethelene (HDPE)
  • PVC

Blowers / Scrubbers

  • Polyproplene (PP)
  • Fiber Rainforced Plastic (FRE)
  • Molded Blower

Airflow Monitor with Alarm

Temperature Indicator

Fire Extinguisher

Color Shade

  • Lista Blue And White
  • Gray And White
  • Green and White
  • Usha Beige and White
  • Orange and White
  • Brown & White
  • VIP Blue & White
  • Blue & Gray
  • Complete White
